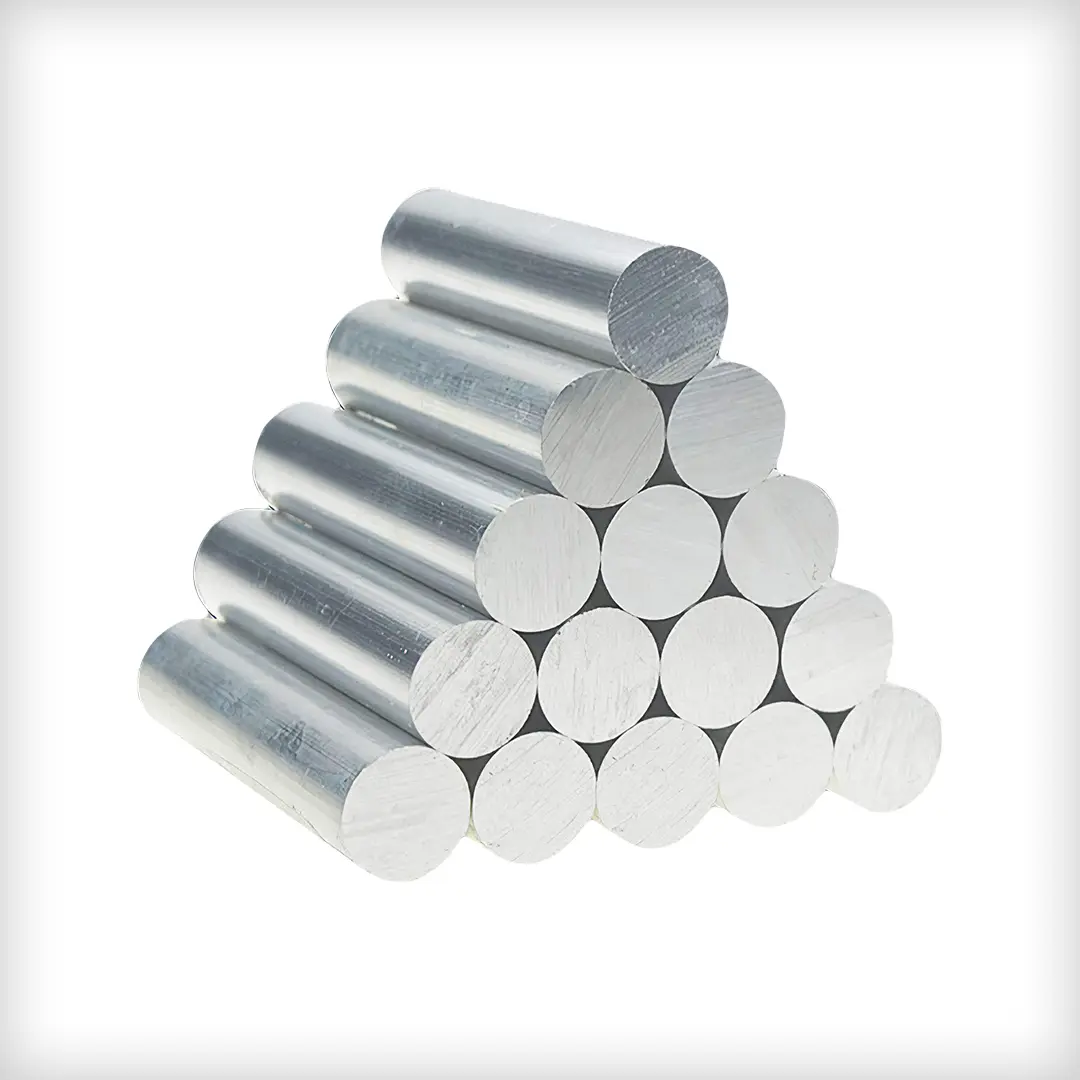

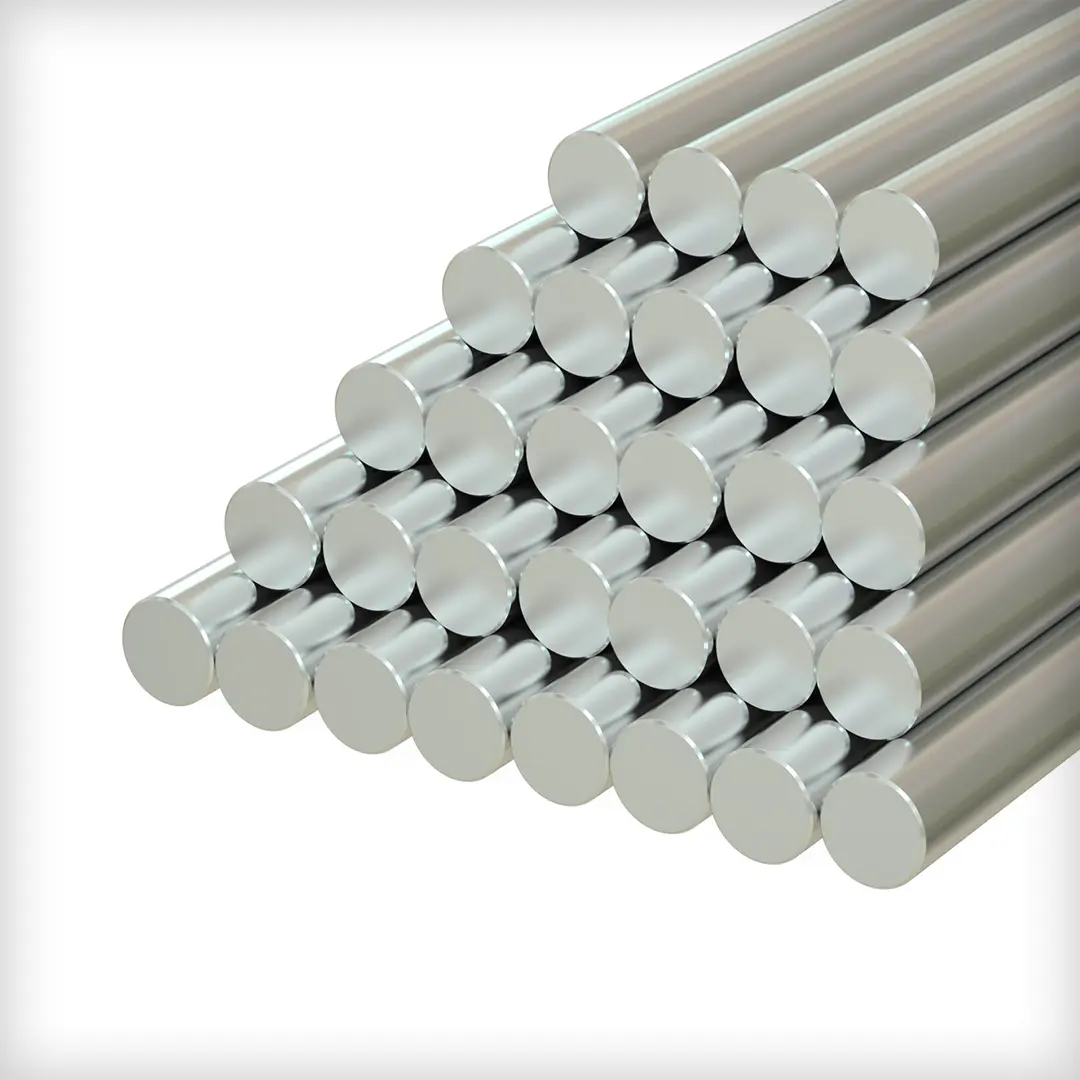

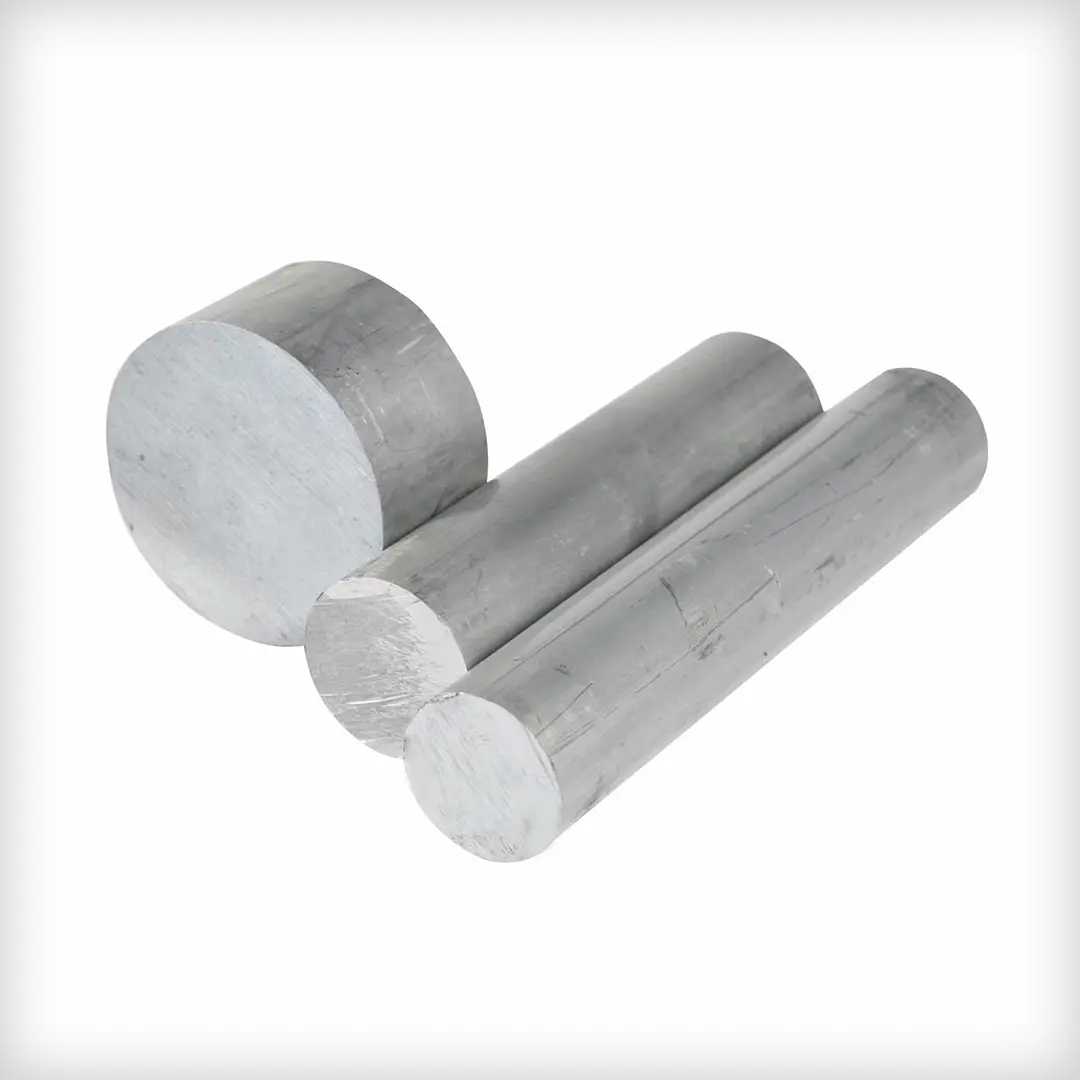

Aluminium Alloy 2024 Round Bars
- Dimensions : ASTM, ASME, AMS
- Specifications : ASTM B221, B211, B565, B316, AMS 4118 2024
- Temper : T3, T4, T5, T6, T651, T6511
- Size : 1/4” Dia – 16” Dia
- Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
- Length : Random, Fix & Cut Length
- Finish : Bright, Polish & Black
Share:
Aluminium 2024 Round Bars Chemical Composition
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
Aluminium 2024 Round Bars Physical Properties
| Physical Property | Value |
| Density | 2.82 g/cm³ |
| Melting Point | 535 °C |
| Modulus of Elasticity | 71 GPa |
| Electrical Resistivity | 0.045 x10^-6 Ω .m |
| Thermal Conductivity | 138 W/m.K |
| Thermal Expansion | 23 x10^-6 /K |
Aluminium A92024 Round Bars Mechanical Properties
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
Standard Specification of 2024 Aluminium Round Bar
| Specification | Alloy | Temper | Company |
| Europe | |||
| EN 2089/2395 | 2024 | T6(T62)/T4(T42) | |
| EN 2087/2088 | 2024 clad | T6(T62)/T4(T42) | |
| France | |||
| AIR 9048.010/.030/ | 2024 | F(T42)/F(T62)/T4/ | |
| .020/.040/.050 | 2024 | T6/T451 | |
| AIR 9048.060/.080/.070/.090 | 2024 clad | F(T42)/F(T62)/T4/T6 | |
| Germany | |||
| W.-Nr. 3.1254 | 2024 | T4, T6 | |
| W.-Nr. 3.1354 | 2024 | O(T42), T3 | |
| United Kingdom | |||
| BS L156/157/158*/159* | 2024 | ||
| 158*/159* | 2024 clad | (T42)(T62) | BAE Systems |
| BS L163/164/165 | 2024 clad | T3/F(T42), T4/T6 | |
| BS L166*/167* | 2024 clad | F(T42), T4/T6 | |
| USA | |||
| AMS QQ-A-250/3 | 2024 clad | O, T4, T6 | |
Weight Chart of 2024 Aluminium Round Bar
| Product | Diameter | Weight |
| 2024 Aluminium Round Bar | 6 mm | 0,076 Kg/m |
| 2024 Aluminium Round Bar | 7 mm | 0,104 Kg/m |
| 2024 Aluminium Round Bar | 8 mm | 0,136 Kg/m |
| 2024 Aluminium Round Bar | 9 mm | 0,172 Kg/m |
| 2024 Aluminium Round Bar | 9,5 mm | 0,191 Kg/m |
| 2024 Aluminium Round Bar | 10 mm | 0,212 Kg/m |
| 2024 Aluminium Round Bar | 11 mm | 0,257 Kg/m |
| 2024 Aluminium Round Bar | 12 mm | 0,305 Kg/m |
| 2024 Aluminium Round Bar | 12,5 mm | 0,331 Kg/m |
| 2024 Aluminium Round Bar | 13 mm | 0,358 Kg/m |
| 2024 Aluminium Round Bar | 14 mm | 0,416 Kg/m |
| 2024 Aluminium Round Bar | 16 mm | 0,543 Kg/m |
| 2024 Aluminium Round Bar | 16,5 mm | 0,577 Kg/m |
| 2024 Aluminium Round Bar | 18 mm | 0,687 Kg/m |
| 2024 Aluminium Round Bar | 19 mm | 0,766 Kg/m |
| 2024 Aluminium Round Bar | 20 mm | 0,848 Kg/m |
| 2024 Aluminium Round Bar | 22 mm | 1,026 Kg/m |
| 2024 Aluminium Round Bar | 25 mm | 1,325 Kg/m |
| 2024 Aluminium Round Bar | 28 mm | 1,663 Kg/m |
| 2024 Aluminium Round Bar | 30 mm | 1,909 Kg/m |
| 2024 Aluminium Round Bar | 31 mm | 2,038 Kg/m |
| 2024 Aluminium Round Bar | 32 mm | 2,171 Kg/m |
| 2024 Aluminium Round Bar | 35 mm | 2,598 Kg/m |
| 2024 Aluminium Round Bar | 38 mm | 3,062 Kg/m |
| 2024 Aluminium Round Bar | 40 mm | 3,393 Kg/m |
| 2024 Aluminium Round Bar | 45 mm | 4,294 Kg/m |
| 2024 Aluminium Round Bar | 50 mm | 5,301 Kg/m |
| 2024 Aluminium Round Bar | 55 mm | 6,415 Kg/m |
| 2024 Aluminium Round Bar | 60 mm | 7,634 Kg/m |
| 2024 Aluminium Round Bar | 65 mm | 8,959 Kg/m |
| 2024 Aluminium Round Bar | 70 mm | 10,391 Kg/m |
| 2024 Aluminium Round Bar | 75 mm | 11,928 Kg/m |
| 2024 Aluminium Round Bar | 80 mm | 13,572 Kg/m |
| 2024 Aluminium Round Bar | 90 mm | 17,177 Kg/m |
| 2024 Aluminium Round Bar | 100 mm | 21,206 Kg/m |
| 2024 Aluminium Round Bar | 105 mm | 23,379 Kg/m |
| 2024 Aluminium Round Bar | 110 mm | 25,659 Kg/m |
| 2024 Aluminium Round Bar | 120 mm | 30,536 Kg/m |
| 2024 Aluminium Round Bar | 127 mm | 34,203 Kg/m |
| 2024 Aluminium Round Bar | 130 mm | 35,838 Kg/m |
| 2024 Aluminium Round Bar | 140 mm | 41,563 Kg/m |
| 2024 Aluminium Round Bar | 150 mm | 47,713 Kg/m |
| 2024 Aluminium Round Bar | 180 mm | 68,707 Kg/m |
| 2024 Aluminium Round Bar | 200 mm | 84,823 Kg/m |
| Primary Alloying Element | Copper (Cu), Magnesium + Silicon (Mg+Si), Other elements (e.g., Li) |
|---|
